DSEI 2017: Babcock Unveils Arrowhead General Purpose Frigate Design

Babock unveiled today the Arrowhead 120m general-purpose frigate at DSEI 2017 in London. Arrowhead’s, adaptable configuration acknowledges operational roles will change through the life of the ship with multiple mission bays incorporated into the design allowing for rapid reconfiguration and re-role to meet changing operational needs.

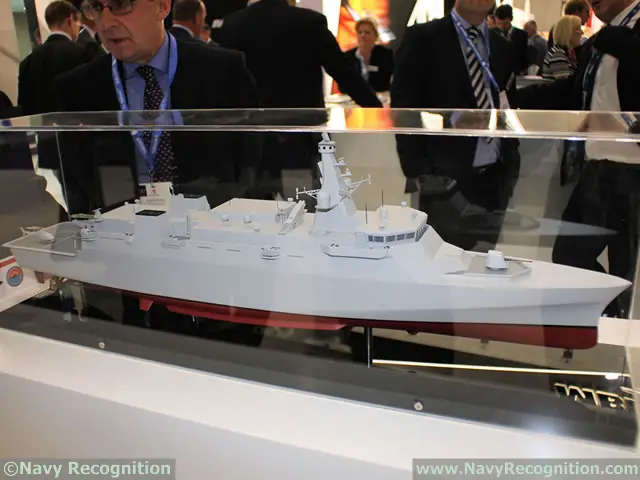

Arrowhead Frigate Babcock DSEI 2017 news 1Arrowhead general purpose frigate scale model as showcased on Babcock's stand at DSEI 2017

Babcock has been advancing operational and data analysis technologies at a rapid pace. Arrowhead is cleverly designed to reduce through life costs by embedding key innovations such as real time equipment health monitoring during the build enabling information to be collected during deployment on the fitness of its systems to inform future service and maintenance arrangements.

All of which presents a real step forward to achieving the ‘iFrigate™’.

With the vessel able to accommodate a variety of equipment choices and with flexibility at the centre of the design philosophy Arrowhead can be deployed for a broad range of roles from low threat security operations to task force deployments.

The Arrowhead design lends itself equally to either a single build strategy, or a cross–site build strategy bringing together modules – an approach used for aircraft carrier assembly at Rosyth.

Arrowhead Frigate Babcock DSEI 2017 news 2Arrowhead general purpose frigate scale model as showcased on Babcock's stand at DSEI 2017

Craig Lockhart, Managing Director Naval Marine, Babcock said: “Arrowhead is a game changing general purpose frigate for modern navies. Optimising Through Life Support costs is at the very core of the principles of Arrowhead’s design and build methodology, all balanced against the ability to deliver the required capability.

“In focusing Arrowhead’s development around a sustainable and capable design that will help to keep any fleet ‘mission ready’, Babcock has drawn upon its significant experience in vessel design and support for global clients”.

The 120m Arrowhead is an exciting addition to Babcock’s portfolio of ships that also includes 50m Inshore Patrol Vessels, and 70m and 90m Offshore Patrol Vessels. The most recent build example being the Samuel Beckett Class OPVs that Babcock is building for the Irish Naval Service at its Appledore facility in North Devon.

Arrowhead Frigate Babcock DSEI 2017 news 3Arrowhead feature a shell door on the water line to easily recover people in distress (man over board or migrants).


Arrowhead 120 has a length of 120 meters, a breadth of 19 meters for a displacement of 4000 tonnes. Its speed is 24+ knots and range is 6000 nautical miles at 15 knots. Crew complement is 80 (plus 40). The vessel was design with commercial standard with applied naval engineering standards.

Missions bays: Space for numerous containerized units within the optimally located mission bays. Facilities for launch & recovery of UXVs. Flexible, reconfigurable infrastructure.

Missile options: Deck space for up to 8 surface to surface guided weapons. Up to 16 cells VLS.

Small calibre guns: Design provision for SCGs up to 30mm with associated EO sensors and magazine arrangements. Weapons can be fitted at a number of upperdeck positions.

Medium calibre guns: Design provision for MCG up to 5 Inch (127mm) with associated infrastructure.


Aviation: Flight deck sized for AW-101 Merlin/MH-60 Seahawk. Hangar capable of accommodating a medium organic naval helicopter (e.g. Seahawk or NH90) or a lighter helicopter plus a VTOL UAV (e.g. AW-159 Wildcat & MQ-8C Firescout). Design can accommodate all envisaged customer naval aircraft.
