Combattante BR71 Mk II Corvette
(CMN - Constructions Mecaniques de Normandie)



The COMBATTANTE BR71 Mk II vessel is an evolution and an upgrade of the CMN sea proven BR family vessels (Baynunah class). The vessel is designed for littoral warfare defence operations against air and surface threats and law enforcement.
Description
The COMBATTANTE BR71 Mk II vessel is an evolution and an upgrade of the CMN sea proven BR family vessels (Baynunah class). The vessel is designed for littoral warfare defence operations against air and surface threats and law enforcement.

Contact

CMN
51 Rue de la Bretonnière - BP 539
50105 Cherbourg Cedex - FRANCE
Phone: +33 (0)2 33 88 30 00
Fax: +33 (0)2 33 88 30 00
This email address is being protected from spambots. You need JavaScript enabled to view it.

Variants
- Combattante BR71 Mk I
Technical Data
Back to top
Design
» Combine speed and fire power with optimization of acquisition cost
» Compact and multifunction vessel, capable of high performances
» Stealth aspect
» Perfect 360° view all around the vessel
Missions
» Coastal and off-shore patrolling
» Intelligence, Surveillance & Reconnaissance (ISR)
» Naval and law enforcement application
» Integration to a naval task force for Anti Surface and Anti Air Warfare
» Exclusive Economic Zone (EEZ) monitoring & surveillance
» Scouting around tactical areas
» Deterrent strike operations
» Support to Land Forces actions operations
» 5t class helicopter operation
Performance and Competitive Features
» A maximum speed of 30 knots
» Impressive performance for a medium range vessel
» Very compact and powerful
» Reduced RCS
» Optimised wheelhouse arrangement with wide visibility all around the vessel
» 360° free radar detection arc
» Large modularity adapted to the full range of maritime surveillance tasks
» Helicopter platform Level II Class 3
» One Compact Mast (Cmast ©)
» UAV operations
Typical Mission Systems
» One Combat Management System
» One 3D combined Surveillance Radar + IFF
» One Fire Control Radar
» One Electro-optical System
» One Medium Caliber Gun: 76MM or 57 mm
» One Surface to Surface Missile System with 8 Exocet missiles
» One Surface-to-Air Missile System with 8 vertical launch missiles
» One Short Range Air Defence Missile System
» Two Remote-Controlled Weapon stations (up to 30 mm) One Tactical Data Link System
» One R-ESM System and one C- ESM System
» One Decoy Launching System
» Integrated Naval communications System
» One Integrated Bridge Control System (IBCS)
» One 25 kW X-band radar
Main Equipment & Auxiliaries
» Three generating sets
» Four diesel engines
» Four Waterjets : 2 steering & 2 booster
» Two 7.50 Rigid Inflatable Boats (RIB)
» One Compact Mast (Cmact ©)

Specifications
Type
Corvette
Crew
50
Operators
-
Performance
Speed: 30 kts
Range: 2,500 nm @ 12 kts
Endurance: n/a
Fuel
100 t
Fresh water
8 t
Hull & Superstructure
Steel/Aluminium

Dimensions

Length: 70.30 m
Bream: 11.00 m
Maximum Draft: 3.00 m

Detailed View
The COMBATTANTE BR71 Mk II vessel is an evolution and an upgrade of the CMN sea proven BR family vessels (Baynunah class). The vessel is designed for littoral warfare defence operations against air and surface threats and law enforcement.
The COMBATTANTE BR71 Mk II vessel is an evolution and an upgrade of the CMN sea proven BR family vessels (Baynunah class). The vessel is designed for littoral warfare defence operations against air and surface threats and law enforcement.

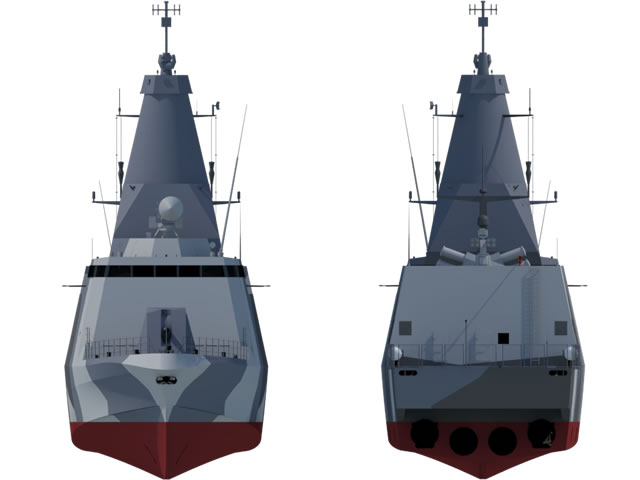

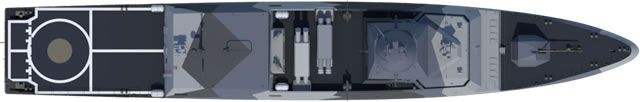

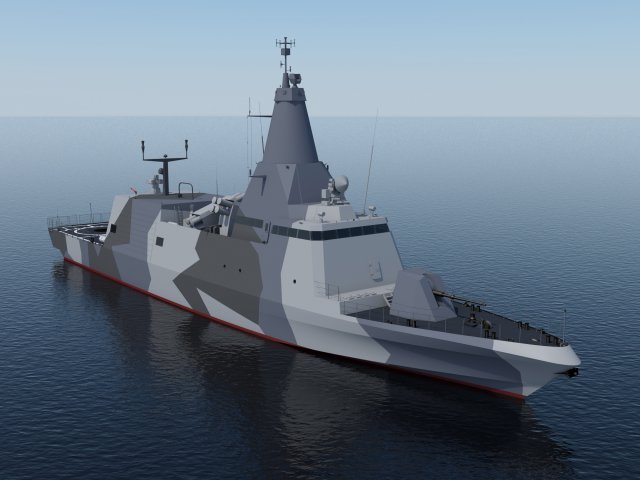

Pictures - Video
Back to top

All pictures © CMN
